How to Install 2 Stroke Piston Rings: A Complete Step-by-Step Guide

Installing 2 stroke piston rings correctly is essential for optimal engine performance and longevity. Whether you are assembling a motorcycle, outboard motor, or general-purpose engine, precision during installation can make a significant difference.

Step 1: Prepare the Tools and Workspace

Before installation, ensure your workspace is clean and free from dust or debris. You’ll need a piston ring installer tool, feeler gauges, a clean cloth, and engine oil. Avoid using sharp tools that might damage the rings or piston grooves.

Step 2: Inspect the Piston and Rings

Check the piston for wear, carbon deposits, or damage. DY Piston Rings are manufactured with premium-grade materials and precise tolerances, but you must still inspect each ring for cracks or warping before installation.

Step 3: Check Ring End Gaps

Place the ring inside the cylinder bore about 15mm below the deck and use a feeler gauge to measure the ring end gap. This gap ensures thermal expansion clearance. Refer to your engine manual for correct specifications. DY rings offer consistent dimensions due to advanced manufacturing standards.

Step 4: Position the Rings Correctly

Most 2 stroke pistons use two compression rings without an oil ring. Identify the ring markings (usually “R” or “TOP”) and make sure they face upwards. Align ring gaps at recommended positions—typically 120° apart—to avoid gas blow-by.

Step 5: Install the Rings

Gently expand each ring just enough to slide over the piston and into its groove. Avoid over-stretching, which can cause permanent distortion. Ensure each ring fits snugly into its designated groove and rotates freely. DY piston rings, used by global brands like Honda Power, CFmoto, and STIHL, are engineered for easy and secure installation.

Step 6: Lubricate and Final Assembly

Apply a thin coat of engine oil to the piston and rings before inserting the piston into the cylinder. Use a proper ring compressor or finger technique for 2 stroke applications. Rotate the crankshaft slowly to ensure smooth movement.

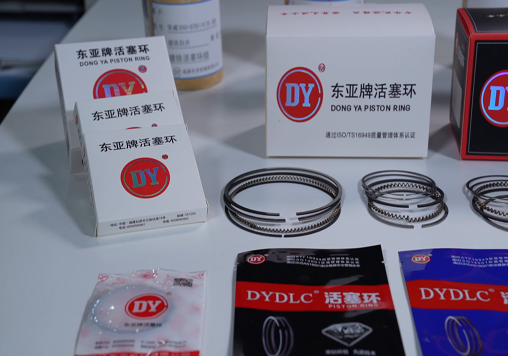

Why Choose DY Piston Rings?

Founded in 1988, Fujian Dongya Machinery Co., Ltd. has over 30 years of expertise in manufacturing high-performance piston rings. With over 110 million piston rings produced annually, the company supplies top brands across Europe, the USA, South America, and Southeast Asia.

• ISO/TS16949, ISO14001, and ISO45001 Certified

• Over 50 national patents and 16 technical standard contributions

• Advanced R&D through Xiamen New Dongya and East Asia Nanotechnology

• Strategic partnerships with Changan, Dongan Power, and Sokon Industrial

Conclusion

Proper installation of 2 stroke piston rings ensures better compression, reduced emissions, and longer engine life. By following this guide and choosing reliable components like DY Piston Rings, you invest in lasting performance and reliability.

For more technical insights and product information, visit Fujian Dongya Machinery Co., Ltd. or contact our team of experts today.
