How Piston Rings Master Their Mission: Supporting, Heat Conducting, Oil Controlling, and Sealing

Piston rings are the unsung maestros conducting the critical symphony inside your engine's cylinders. Far more than simple metal bands, they perform four interdependent, high-precision functions essential for converting explosive energy into reliable motion: Supporting, Heat Conducting, Oil Controlling, and Sealing. Understanding how they excel in each role reveals the engineering brilliance packed into these compact components.

1. Providing Crucial Support: The Stabilizing Force

While not their primary function, piston rings play a vital secondary role in supporting the piston within the cylinder bore.

·The Challenge: Pistons experience immense side forces during their rapid up-and-down travel, especially during the power and compression strokes. Without support, the piston skirt could rock excessively or even make damaging contact with the cylinder wall.

·The Action: Piston rings, seated firmly in their grooves and pressed outward against the cylinder wall by their inherent tension and combustion pressure, act as discrete contact points. They help stabilize the piston's lateral movement (piston slap) and maintain proper alignment.

·The Benefit: This support minimizes piston skirt wear, reduces noise and vibration, and contributes to smoother piston travel and reduced friction losses. It ensures the piston moves true within the cylinder, optimizing the efficiency of the other three core functions.

2. Conducting Heat: The Vital Thermal Pathway (The Thermal Regulator)

Combustion generates extreme temperatures exceeding 2000°F (1100°C) at the piston crown. Rings, especially the top compression ring, are critical heat conductors.

·The Challenge: This intense heat must be rapidly removed from the piston to prevent catastrophic failure – melting, pre-ignition (knock), ring land collapse, or ring scuffing/seizure. The piston itself has limited direct contact with the cooled cylinder wall.

·The Action: The piston rings bridge the gap. They act as the primary thermal conduit:

            The hot piston crown transfers heat to the rings (especially the top ring) through direct contact within the ring groove.

            The rings, in constant contact with the cylinder wall, transfer this heat through themselves and into the cylinder wall material.

            The engine's coolant circulating around the cylinder liners or within the block/head then absorbs and dissipates this heat.

·The Benefit: Effective heat transfer prevents localized overheating, protects piston and ring integrity, maintains optimal combustion chamber temperatures, and prevents destructive knock. It's estimated rings handle up to 70% of the heat leaving the piston crown.

3. Controlling Oil: The Precision Lubrication Manager (The Oil Control Ring)

Maintaining the perfect amount of oil on the cylinder wall is paramount. Too little causes scuffing; too much burns in the chamber. This is the domain of the oil control ring (OCR) assembly.

·The Challenge: The cylinder wall must be lubricated to minimize friction and wear between the rings/piston skirt and the wall. However, excess oil must be prevented from entering the combustion chamber where it would burn inefficiently, create emissions, and deplete oil levels.

·The Action: The OCR (typically the lowest ring) is specifically engineered for this precision task:

o    Scraping: As the piston moves downward, the OCR's sharp scraping rails contact the cylinder wall, removing excess oil.

o    Channeling: The scraped oil flows through slots or holes in the OCR and behind its expander/spacer.

o    Returning: This collected oil is then directed through drain holes in the piston ring groove back into the crankcase (oil sump).

o    Leaving a Film: Crucially, the OCR is designed to leave behind a microscopically thin, continuous film of oil on the cylinder wall – just enough for perfect lubrication.

·The Benefit: Prevents excessive oil consumption and blue exhaust smoke, ensures sufficient lubrication to minimize wear and friction, protects against cylinder scuffing, and contributes to lower emissions.

4. Sealing Combustion: The Core Mandate (The Compression Rings)

This is the piston ring's most critical and demanding role: sealing the combustion chamber during compression and power strokes.

·The Challenge: During combustion, pressures inside the cylinder can spike well over 1000 psi (69 bar). This immense pressure must be contained above the piston crown to efficiently force the piston down and turn the crankshaft. Any leakage is wasted energy.

·The Action: Primarily the job of the top one or two compression rings:

o    Dynamic Seal: The rings are installed with inherent radial tension pushing them outward against the cylinder wall.

o    Pressure-Activated Seal: Combustion pressure forces its way behind the compression ring (into the ring groove). This pressure acts on the inner diameter of the ring, forcing it even more firmly against the cylinder wall. This creates a near-gas-tight dynamic seal.

o    Staggered Gaps: The small gap at the ring ends (necessary for installation and thermal expansion) is offset between rings to prevent a direct leakage path.

·         The Benefit:

o    Maximizes Power: Traps pressure efficiently, converting maximum fuel energy into mechanical work.

o    Improves Efficiency: Minimizes "blow-by" (leakage of combustion gases past the rings into the crankcase), which wastes fuel and power.

o    Protects Oil: Reduces contamination of engine oil by combustion gases and acids.

o    Controls Crankcase Pressure: Prevents excessive pressure build-up that could damage seals and gaskets.

The Synergistic Symphony: Interdependence is Key

These four functions are not isolated; they work in concert:

·Sealing enables Heat Transfer: Effective sealing maintains high combustion pressure, which also forces the ring firmly against the wall, optimizing the thermal contact path for heat conduction.

·Oil Control enables Sealing & Support: The precise oil film left by the OCR lubricates the compression rings, allowing them to seal effectively with minimal friction and wear. It also lubricates the interface for piston support.

·Heat Transfer enables Durability: Efficient heat removal prevents the rings (and piston) from overheating, which would cause loss of tension, sticking, scuffing, or breakage, destroying their sealing, oil control, and support capabilities.

·Support enables Control & Sealing: Stabilizing the piston ensures the rings maintain consistent contact with the cylinder wall, crucial for effective oil scraping/sealing and heat transfer.

Conclusion: Engineering Excellence in Miniature

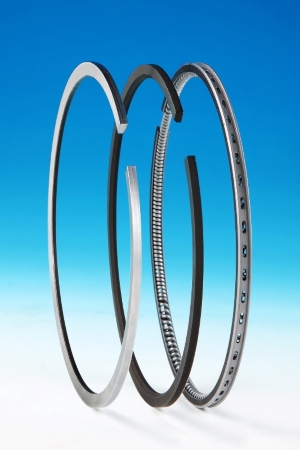

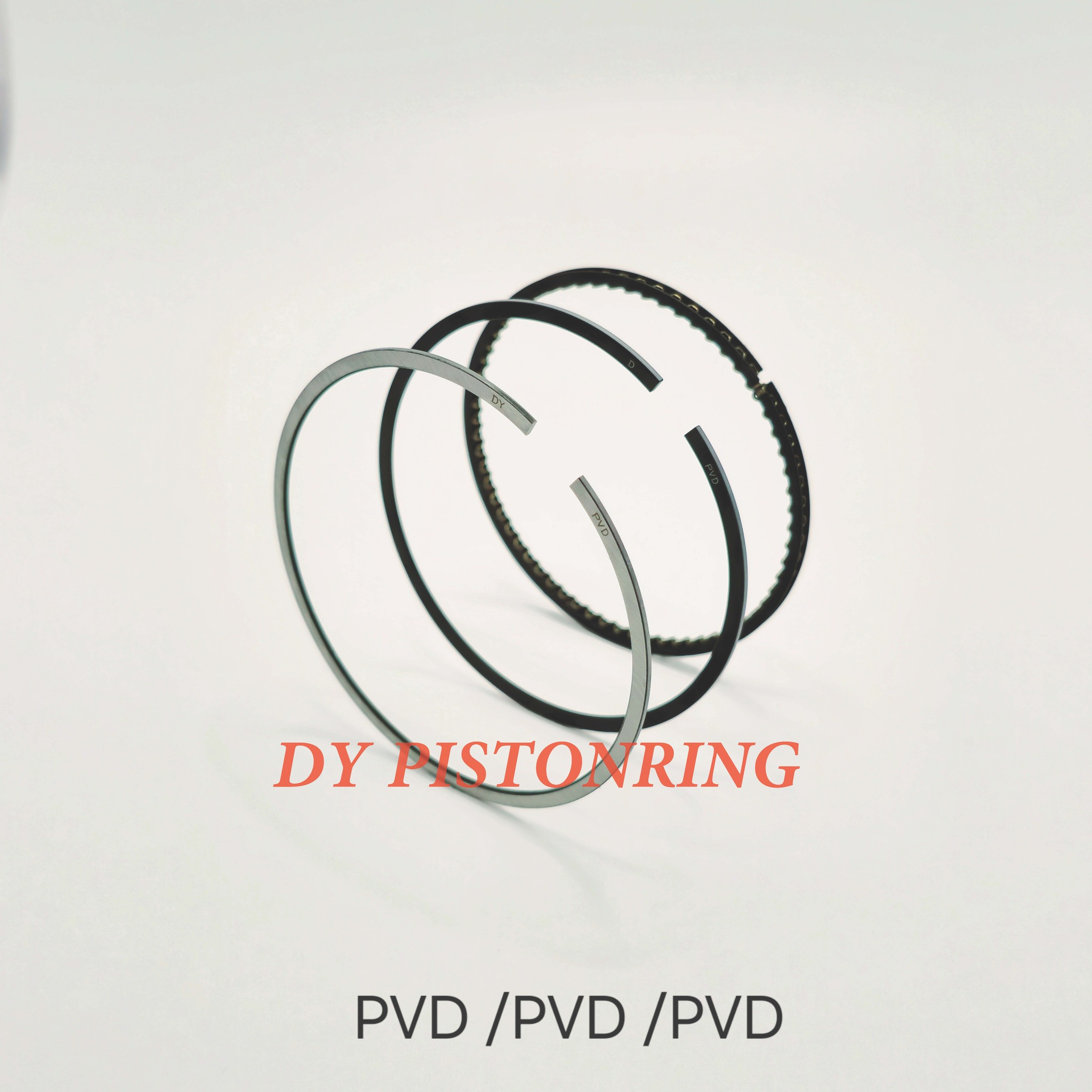

Piston rings are marvels of precision engineering, masterfully balancing the demanding tasks of supporting the piston, heat conducting destructive heat away, oil controlling a microscopic oil film, and sealing explosive pressures. Their success hinges on advanced metallurgy, sophisticated coatings (like chromium, molybdenum, PVD CrN), and meticulously calculated geometries and tensions.

Understanding this intricate interplay highlights why piston ring quality and proper engine maintenance (clean oil, good filtration, avoiding overheating, using quality fuel) are non-negotiable. These unsung cylindrical heroes are fundamental to extracting every ounce of power, achieving optimal fuel efficiency, and ensuring the remarkable longevity of modern engines. They are, quite literally, the vital seals keeping your engine's power contained and its heart beating strong. Choose rings engineered to master all four pillars of their mission.
